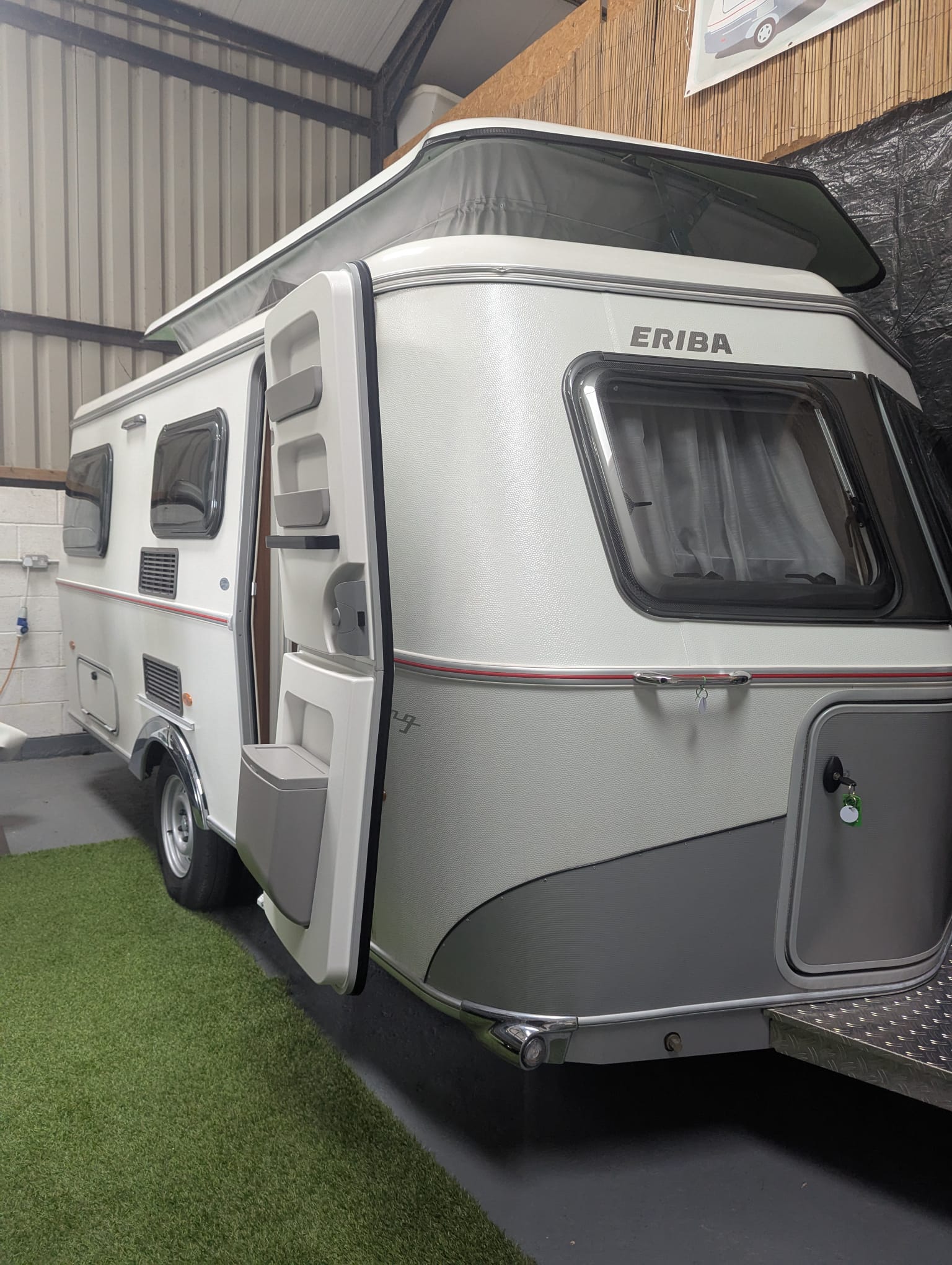

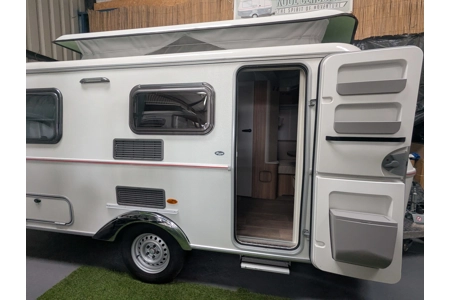

2023 Eriba Troll 540 Legend Dimpled

At Kool HQ

Quick overview it's a 540 with the long single-bed option at the rear

 All prices quoted below are included in the total price.

Colour
Side walls, Colour: White/hammered
Fabric combination: VENTURA for the equipment line Legend

Comfort package £850.00
Mosquito net door (entire door height)
Comfort pleated blinds
Additional magnifying mirror with magnetic holder
Waste bin integrated in the entrance door
Socket package (2 x 230 V sockets and 1 x Twin USB socket)
Sink cover with chopping board
Design package 2
Stone guard protection
Stainless steel bumper
Chrome package with chrome exterior components and steel wheels

Extras added at Factory

Uprated chassis Weight variant 1.4 t

Hampton

Exterior colour-White/silver

Stor.flap, r.RH

Shower equipment

Rear Longitudinal single bed option

Water tank-30 l

Water Therme electric boiler

Single bed upgrade

Autonomy package (Leisure battery)

Design package 2

Chrome package

Comfort package

We can add more upgrades if required.

Standard equipment
12 V LED lighting
13-pin Jaeger connector
230 V socket in a seating group, kitchen as well as living room
81 l absorber fridge incl. freezer compartment (energy source gas, 12 V or 230 V)
All windows are tinted and with double acrylic glazing incl.
Bench toilet with level indicator and cassette on wheels
ERIBA multifunctional rechargeable light with active holder in the living room and two active holders in the bedroom
Extendable entrance step

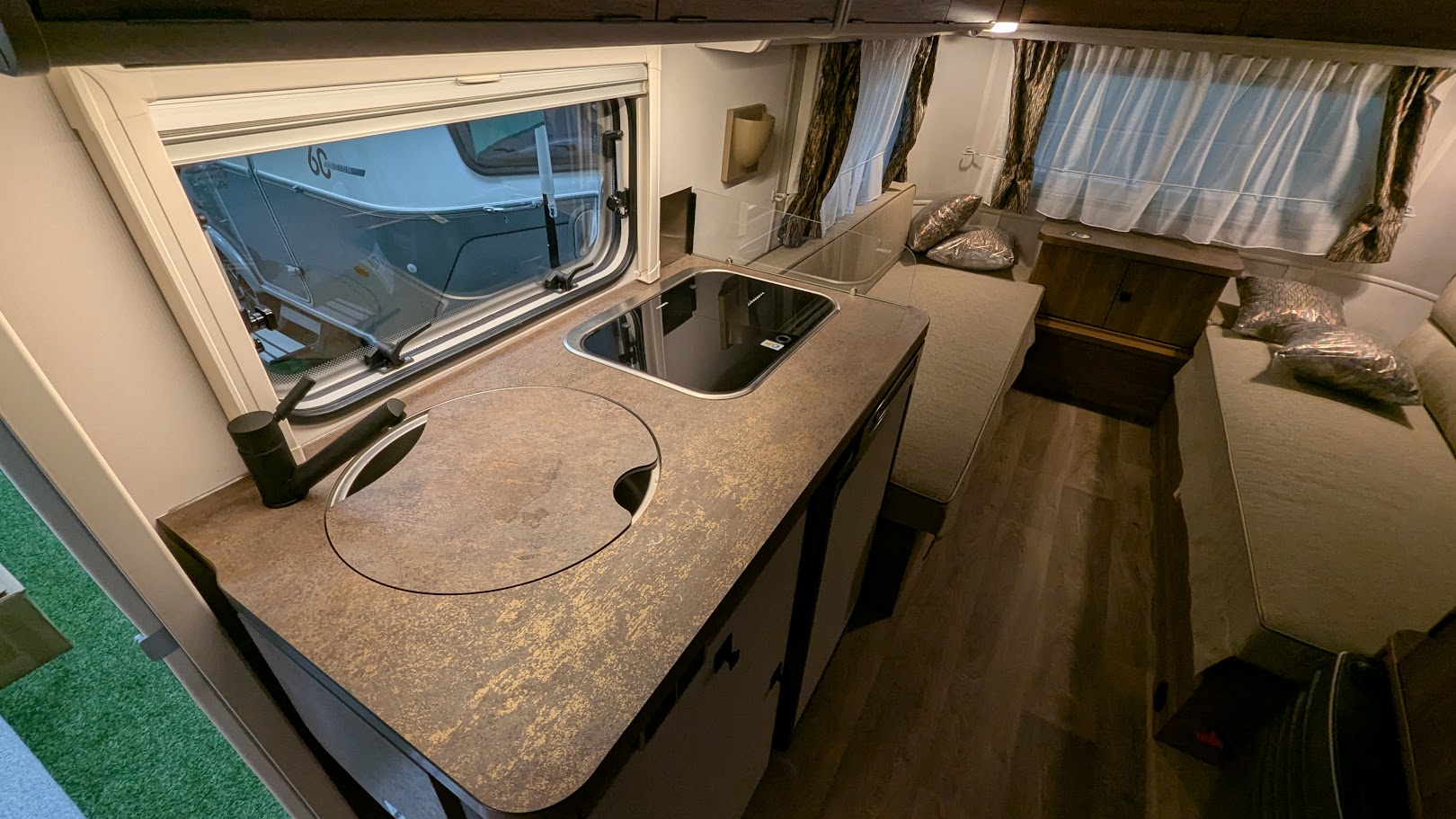

Foldable kitchen worktop extension
Front flap with parallelogram opening and low loading edge
Fully galvanised tubular frame chassis with trailing arm axle and fully galvanised axle body
Galvanised corner steadies
Gas heating Truma S 3004 (3,500 W)
Height-adjustable mirror
Illuminated overhead locker corners
Insulated gas bottle compartment with robust aluminium checker plate floor and low-loading edge
Integrated front storage compartment for gas
Kitchen drawer with Servo Soft feature incl.
LED awning light with motion detector
One multifunctional container in the kitchen, matches the colour of the living room
One utensil bag, matching the colour of the living room incl.

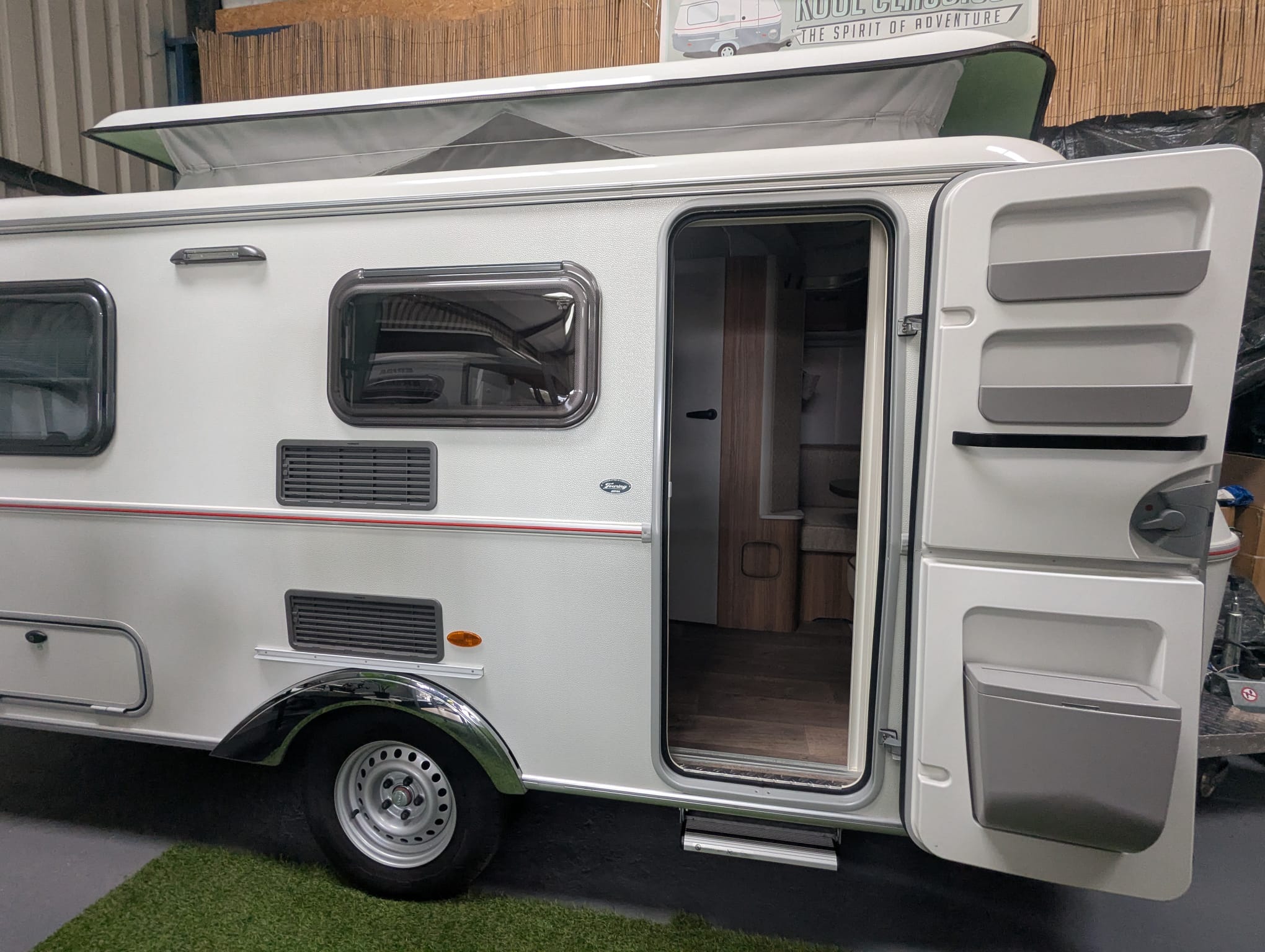

One-piece entrance door with storage shelf and storage net on the inside of
the door

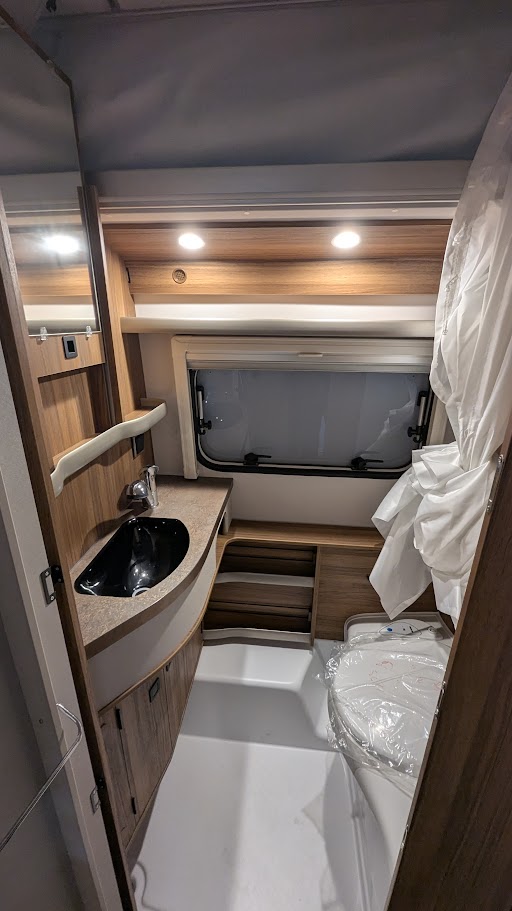

Opening bathroom window, frosted glass, with blackout blind and mosquito net
Optimum sleeping environment by air circulation via openings in the pop-top roof (chimney effect)
Pop-top roof tent fabric with ventilation and integrated mosquito net
Rear lights in LED

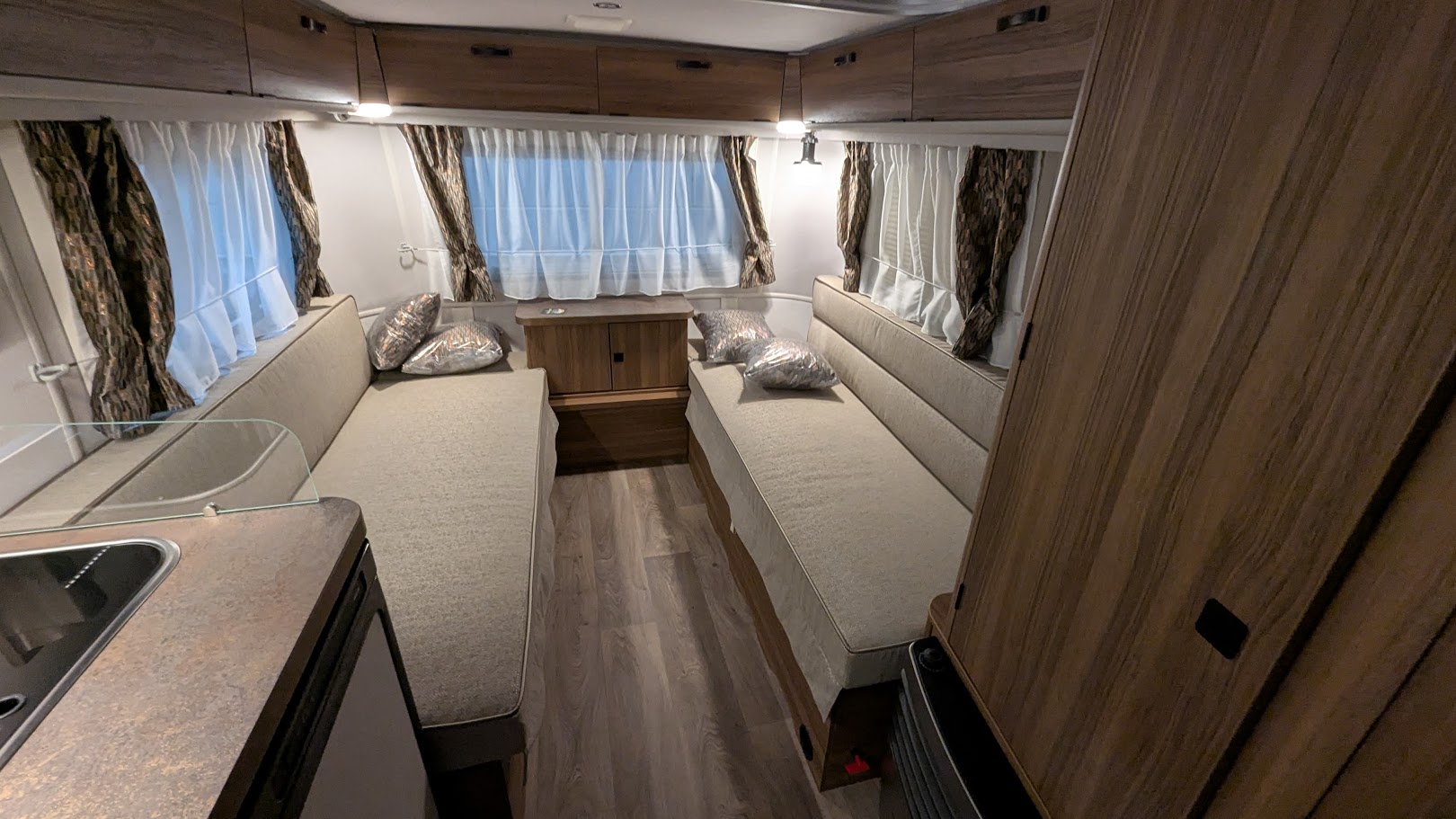

Seating group in the rear with opening window, LH side
Shoe flap at the entrance
Shower tray
Smoke detector
Spacious wardrobe with laundry compartment (height adjustable shelf)
Stable grab handles at the front, continuous manoeuvring handle at the rear
Window with blackout blind and mosquito net, LH side, rear
Windows with mosquito net, blackout blind and ventilation adjustment


The technically permissible total mass, kg 1400 kg
Mass of Troll  - 997 kg
Mass of Optional extras added - 162 kg
Spare payload 241 kg

Vehicle dimensions
Length 599 cm
Width 210 cm
Height 227 cm

Images are a guide. Video of a similar Eriba

Some images are for illustration.
